Aansluitingen 8 pens microfoons en Dataplug.

 Kenwood.            ICOM. Pootje 4=Squels  Pootje 8=afo/tone        Kenwood.            Yaesu.

 1] Modulatie.       8                                                                                 1] Modulatie.       1

 2] Ptt                     6                                                                                 2] Ptt                     5

 3] Down               3                                                                                 3] Down                nc

 4] Up                     1                                                                                4] Up                      3 Up/down d.m.v R470 ohm.

 5] VOEDING !!!      2                                                                               5] VOEDING !!!      2

 6] NC of LF out    nc                                                                              6] NC of LF out    4 (Fast bij Ft-847)

 7] Massa Mic       6                                                                                7] Massa Mic       7

 8] Massa kabel    7                                                                               8] Massa kabel    5 Aarde, bij sommige Yaesu Band switch

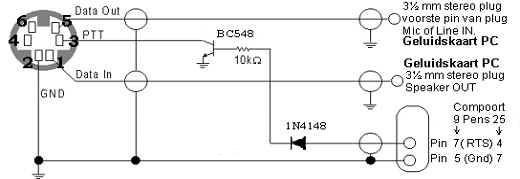

 Aanzicht 8 polige Kenwood mic.                                                       Aanzicht van een 6 polige Kenwood data mini DINplug.

 1] Modulatie.                                                                                          1] PKD = Modulatie ingang.

  2] PTT.                                                                                                     2] DE = Aarde modulatie.

 3] Frequentie down.                                                                             3] PKS = PTT.

 4] Frequentie up.                                                                                  4] PR9 = LF uit 9600 baud, 500mv 10K.

 5] VOEDING UIT !!!                                                                                  5] PR1 = LF uit 1200 baud,SSTV,500mv 10K

 6] LF out (Soms N.C).                                                                           6] SQC = Squels regeluitgang.

 7] Aarde modulatie.

  8] Aarde kabel.

                        Soldeerzijde stekker OF vooraanzicht van chassisdeel.
